GLUE: Coordinating Pre-Trained Generative Models for System-Level Design

Tim Aebersold, Soheyl Massoudi, Mark D. Fuge

ETH Zurich

Abstract

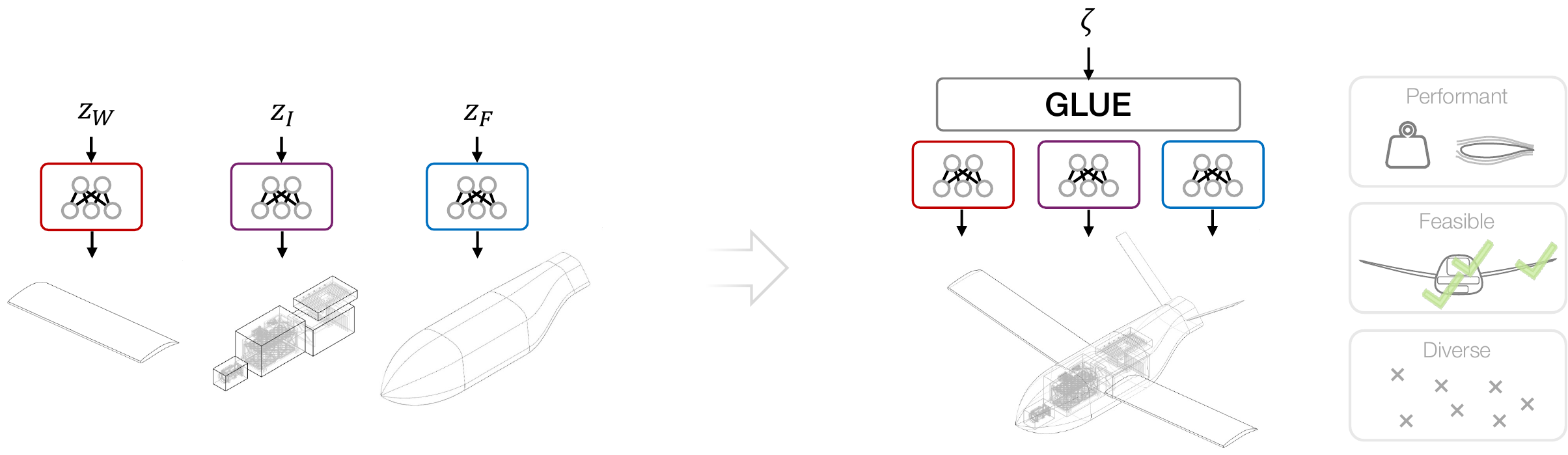

Engineering complex systems (aircraft, buildings, vehicles) requires coordinating geometric and performance couplings across subsystems. As generative models proliferate for specialized domains, a key research gap is how to coordinate frozen, pre-trained submodels to generate full-system designs that are feasible, diverse, and high-performing. We introduce GLUE, which orchestrates pre-trained, frozen generators while enforcing system-level feasibility, optimality, and diversity. Compatible models must be end-to-end differentiable with a smooth, well-behaved latent-to-output mapping. We propose and benchmark (i) data-driven GLUE models trained on pre-generated system-level designs and (ii) a data-free GLUE model trained on a differentiable geometry layer. On a UAV design problem with five coupling constraints, we find that data-driven approaches yield diverse, high-performing designs but require large datasets to satisfy constraints reliably. The data-free approach is competitive with Bayesian optimization and gradient-based optimization in performance and feasibility while training a full generative model in only ~10 min on an RTX 4090 GPU, requiring more than two orders of magnitude fewer geometry evaluations and FLOPs than the data-driven method. We identify equality constraint satisfaction as a key difficulty and remaining limitation, and ablate approaches that improve this for the data-free approach. As a first step toward scaling generative design to complex, real-world engineering systems, this work explores how unmodified, domain-informed submodels can be integrated into a modular generative workflow, provided the submodels and the system-level evaluation pipeline are differentiable.
